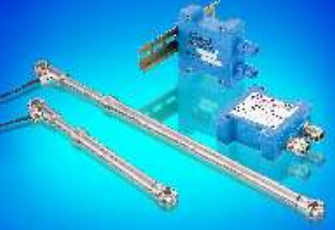

ICT080: Contactless In-Cylinder Linear Transducer

The ICT080 Contactless In-Cylinder Linear Transducer combines the best features associated with LVDTs and potentiometers into one rugged, contactless and highly reliable displacement transducer.With a body diameter of only 8mm the ICT080 is ideal for installation into hydraulic and pnematic cylinder applications where space is at a premium. The ICT080is ideal for use on small-bore actuators and offers a choice of internal or threaded flange mounting configurations to suit tie-rod, welded and rear clevis-mounted cylinder types in stroke rangesfrom 25 to  Two core configurations also provide the designer the following options:1000mm

SLEEVED CORE cylinder rods can be simply machined to accommodate the sleeve. This also gives the option of retro-fitting existing servo-cylinders with an upgrade to ICT technology.

THREADED CORE provides the designer with the minimum transducer body size and simplified installation requiring minimal machining.

With no electrical sliding contacts, theICT080 has a working life which is almost limitless.Signal conditioning is carried out in a separate electronics package(EICT)which can be located up to 10 metres away from the harsh environment in which the transducer may be required to operate. Operating from 10 to 60Vdc, the electronics module can provide a wide range of voltage output signals as well as a 4-20mA option. The electronics is housed in a high strength IP66 enclosure and includes user adjustment for zero and gain.

Key Features

Working pressure to 670 Bar (10,000 psi)

High temperature capability to +200°C (+392°F)

Small transducer body length to stroke ratio

Infinite resolution

Absolute measurement

Flexible mounting styles

Rugged stainless steel construction

CE approved

Rapid despatch of any option

Specification

See related documents (pdf) for full details.
