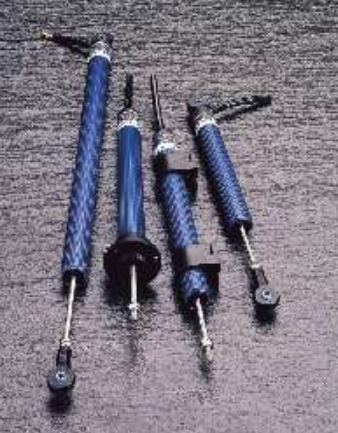

SLS095: Linear Displacement Sensor

The SLS095 is an entirely new range of linear position sensors designed to provide maximum performance benefits within an extremely compact, lightweight package in stroke lengths from 10 to 100mm.Using the proven benefits of Hybrid Track Technology and including a number of unique design features, the SLS095 is ideally suited to high volume OEM manufacturers, where high performance and reliability with competitive pricing and rapid despatch has paramount importance.The miniature size of this new sensor makes it ideal for applications in robotics, animatronics, medical equipment and motorsport data acquisition.

Key Features

Short body to stroke length

Sealing to IP66 and corrosion resistant rod end bearings

Cable assembly integrally moulded

Significantly reduced weight

Rapid delivery

CE approved

Replacement for Penny & Giles´ model HLP095 linear potentiometer

Specification

See related document (pdf) for full details.
